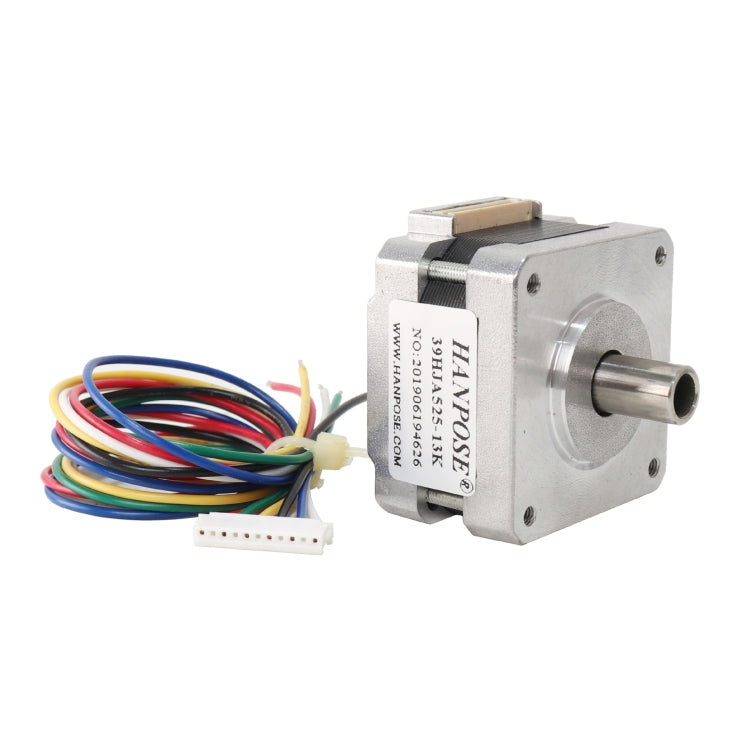

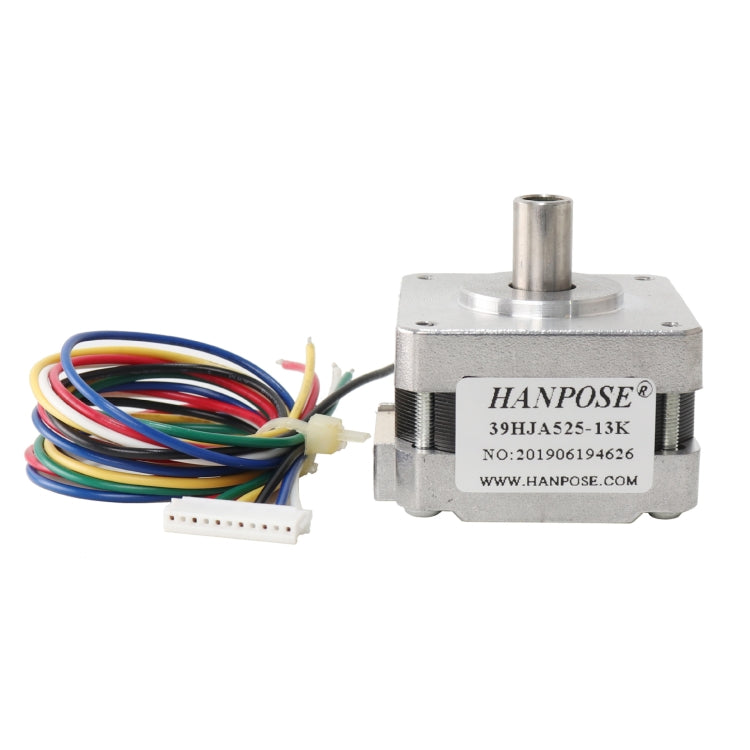

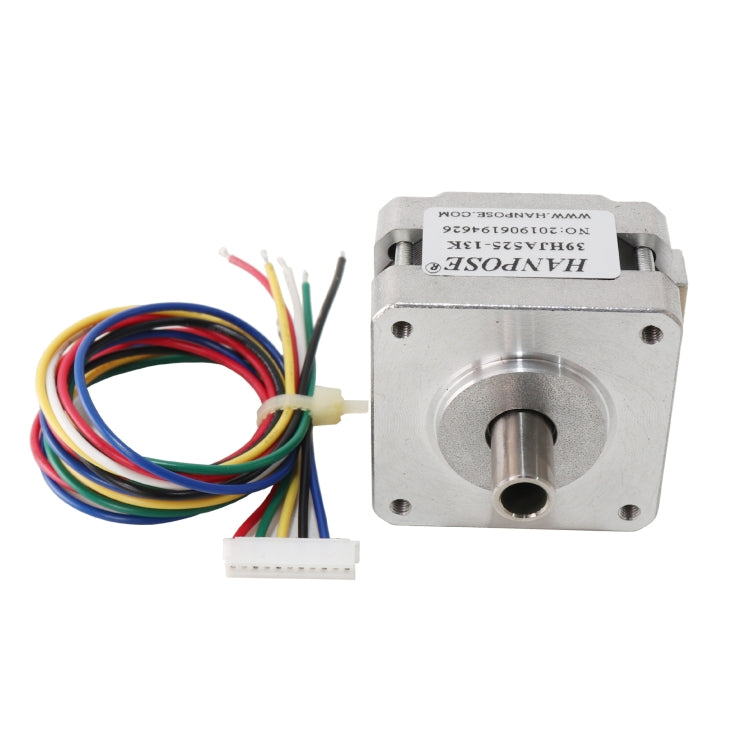

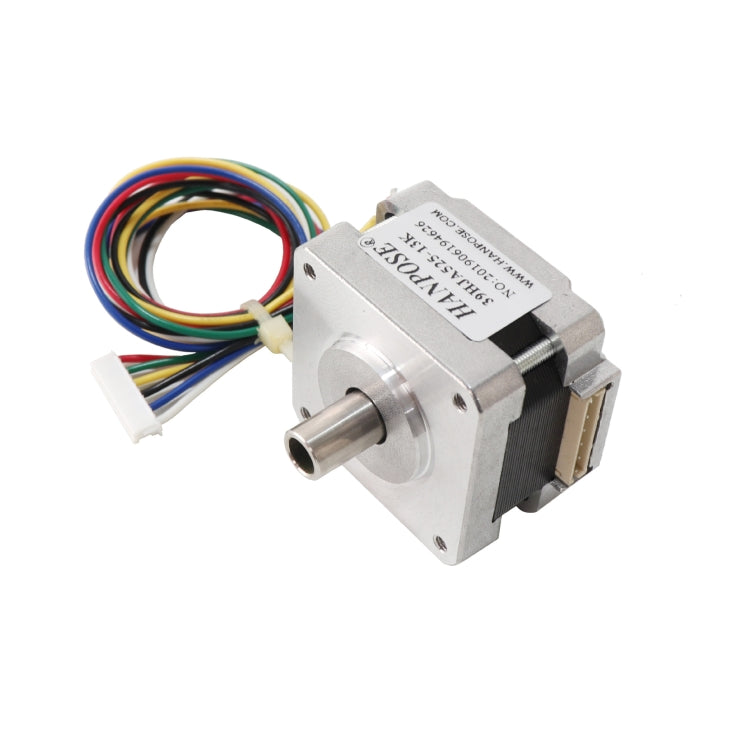

HANPOSE 39HGA525-13K 0.8A 0.2NM Induction Light Stepper Motor, 39HGA525-13K
39HGA525-13K
$12.02
$12.02
$13.36
-10%
⚡ Offer ends in:
Skip to product information
1. Step accuracy: +5% (full step, no load)
2. Step angle: 1.8 degrees
3. Temperature rise: 80 degrees Celsius Max
4. Ambient temperature: -20--+50 degrees Celsius
5. Insulation resistance: 100M Ω min. 500VDC
6. Withstand voltage: 500VAC for 1 minute
7. Radial clearance: 0.06 Max. (450g-load)
8. Axial clearance: 0.08 max. (450g-load)
9. Radial pressure MAX: 28N (20mm From the flange)
10. Axial pressure MAX: 10N
HANPOSE 39HGA525-13K 0.8A 0.2NM Induction Light Stepper Motor, 39HGA525-13K
$12.02
$12.02
$13.36
-10%
⚡ Offer ends in:
1. Step accuracy: +5% (full step, no load)
2. Step angle: 1.8 degrees
3. Temperature rise: 80 degrees Celsius Max
4. Ambient temperature: -20--+50 degrees Celsius
5. Insulation resistance: 100M Ω min. 500VDC
6. Withstand voltage: 500VAC for 1 minute
7. Radial clearance: 0.06 Max. (450g-load)
8. Axial clearance: 0.08 max. (450g-load)
9. Radial pressure MAX: 28N (20mm From the flange)
10. Axial pressure MAX: 10N
