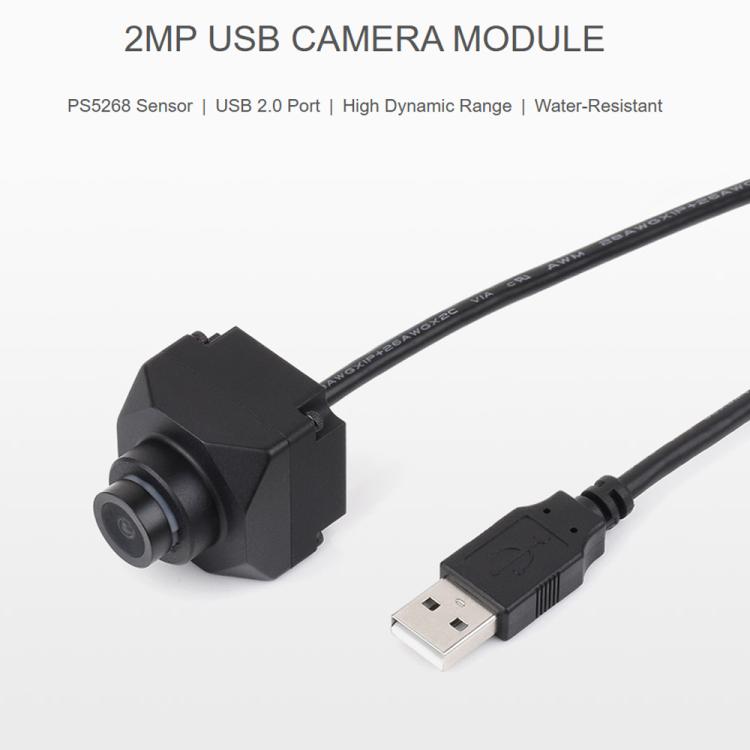

Waveshare PS5268 2MP USB Camera Module 120dB High Dynamic Range, USB2.0 Port, Rolling Shutter, PS5268
PS5268
$347.40
$347.40
Skip to product information

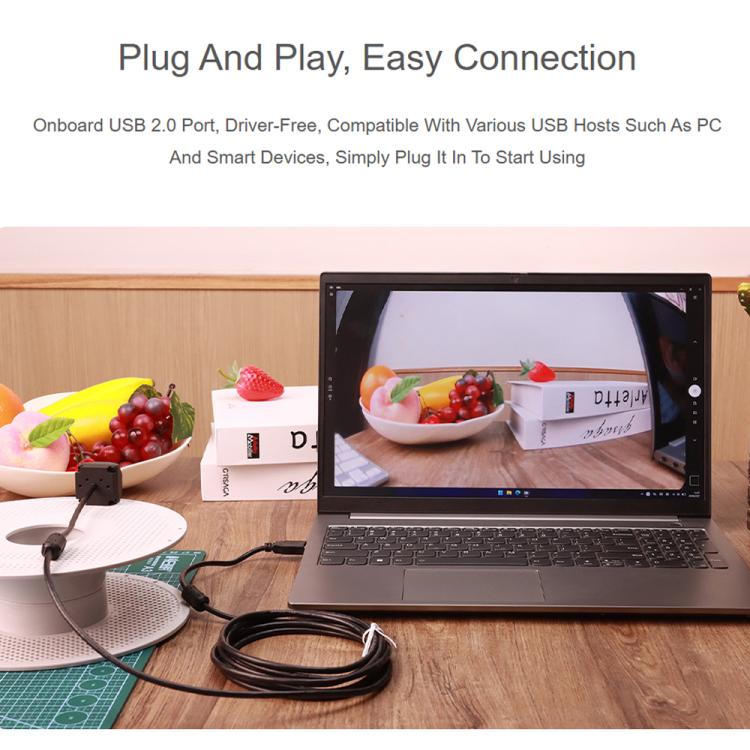

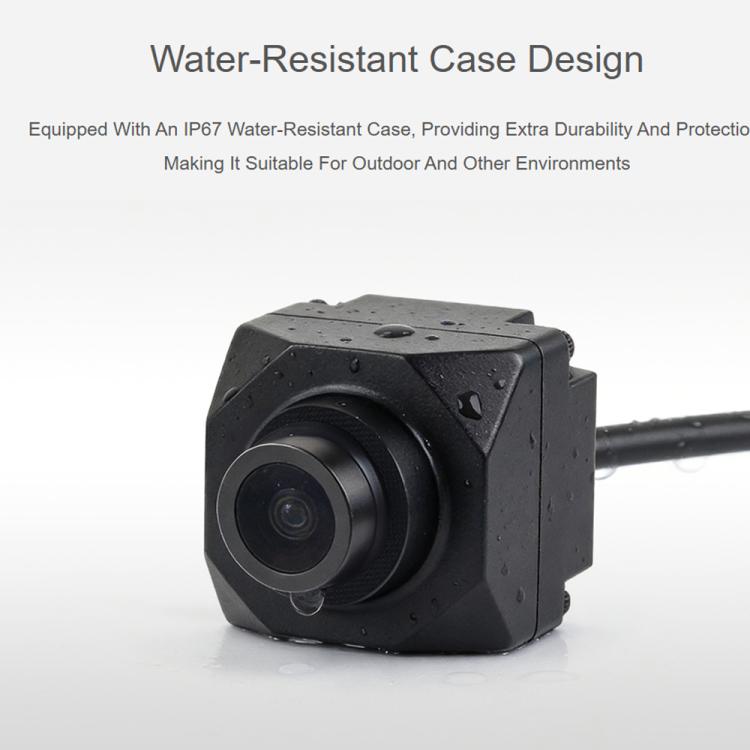

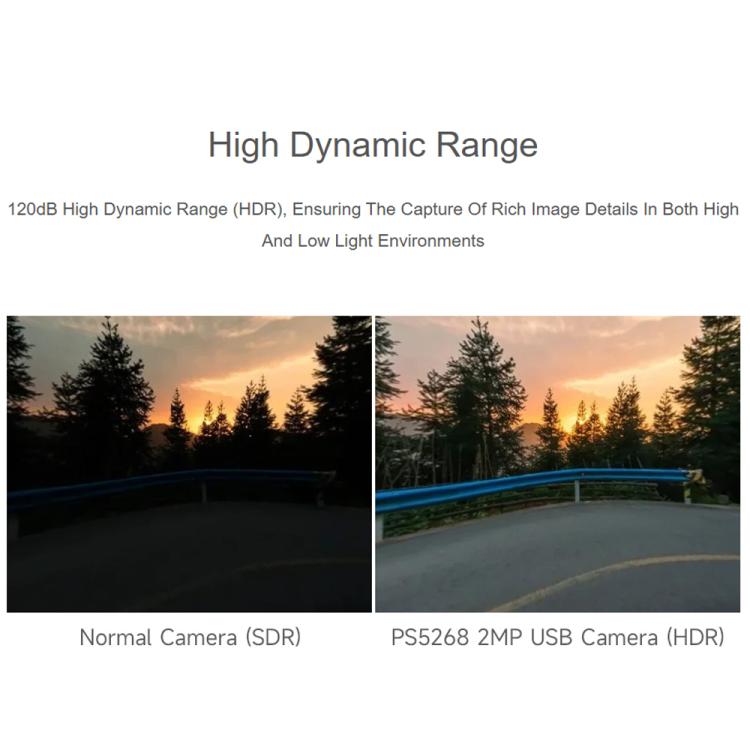

1. This camera module is based on the original PixArt PS5268 sensor and utilizes a USB interface for signal transmission, demonstrating exceptional compatibility. Its convenient direct-connect host design makes applications simple and straightforward. The module maintains a stable 30FPS frame rate, ensuring smooth and uninterrupted video. With a high dynamic range of 120dB and excellent image quality, it clearly presents rich details in various lighting conditions, performing well whether in bright daylight or low-light nighttime environments. The PS5268-2MP-USB camera module also features a waterproof housing for enhanced environmental adaptability, making it suitable for applications requiring high-precision visual data, such as industrial inspection, robotic vision, and security monitoring, providing accurate and reliable visual support.
2. Pixels: 2 million
3. Sensor chip: PS5268
4. Interface type: USB 2.0
5. Camera:
--Sensor element: Size 1/2.4 inch
--Aperture (F): 2.0
--Focal length (EFL): 3.35 mm
--Field of view (FOV): 112.6 degrees horizontal / 57.6 degrees vertical
--Focus method: Fixed focus
--Shutter method: Rolling shutter
6. Image:
--Supported format: MJPG
--Static image resolution: 1920 x 1080
--Video recording support: MJPG 30FPS 1920 x 1080, 30FPS 1280 x 960, 30FPS 1280 x 720, 30FPS 960 x 720, 30FPS 720 x 480, 30FPS 640 x 480, 20FPS 320 x 240, 30FPS 320 x 180
7. Operating voltage: 5V +/- 5%
8. Operating current: 90 mA

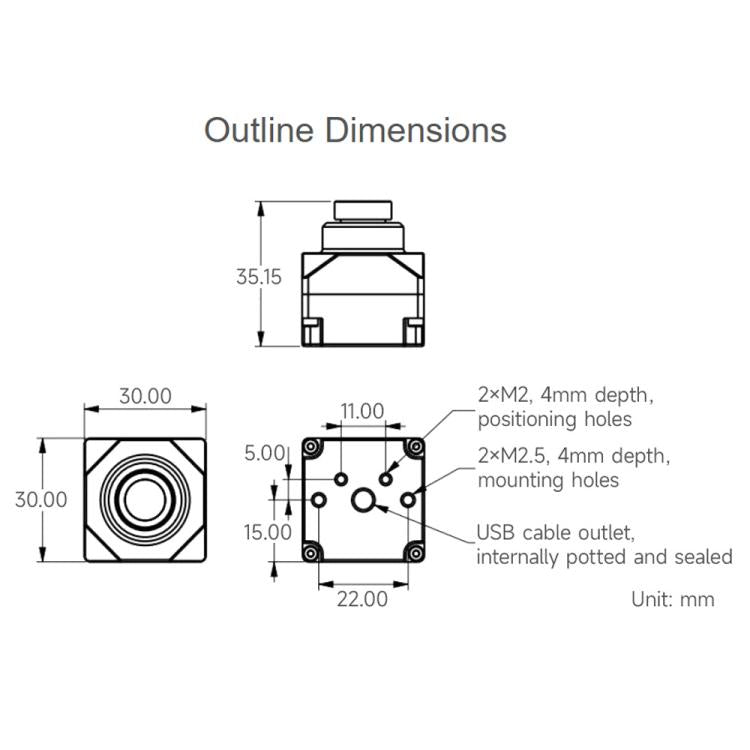

9. Module dimensions: 30.00 x 30.00 x 35.15 mm
