Waveshare Nano Base Board B for Raspberry Pi CM4, Nano Base Board B
Nano Base Board B
$43.85
$43.85
$48.72
-9%
⚡ Offer ends in:
Skip to product information
1. Suitable for evaluating the Raspberry Pi CM4 Or being integrated into end products

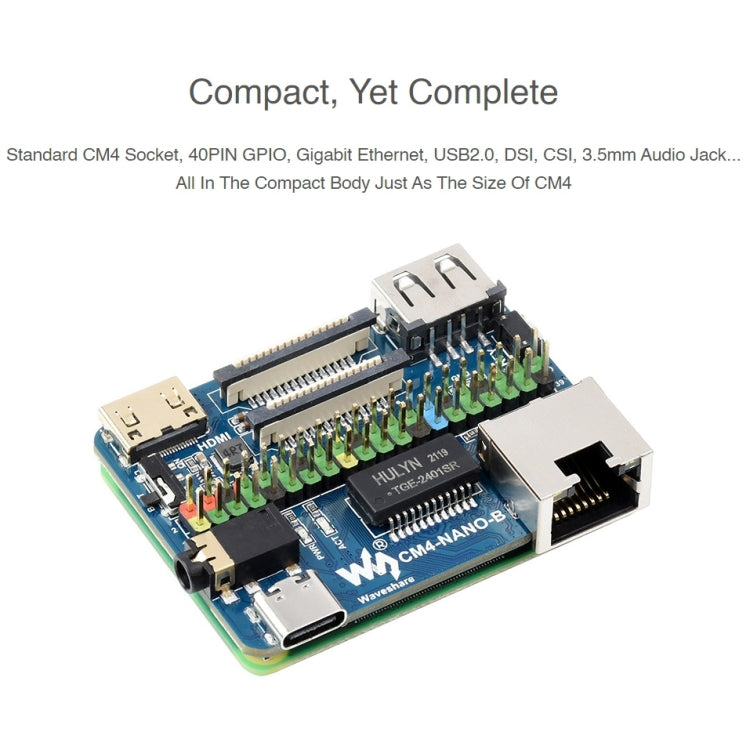

2. Standard CM4 socket, 40PIN GPIO, gigabit ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack...
3. All in the compact body just as the size of CM4

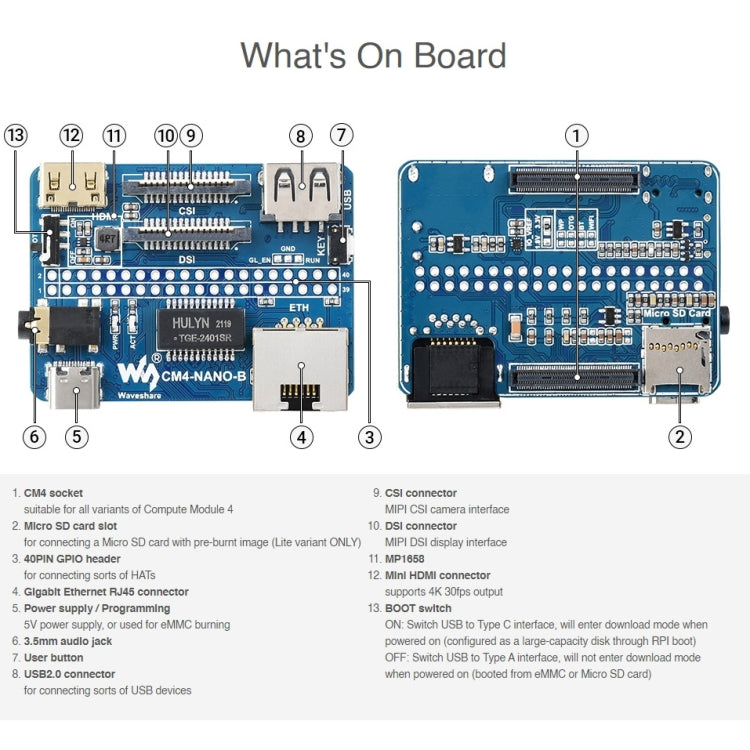

Specifications:
1. CM4 socket: Suitable for all variants of Compute Module 4
2. Networking: Gigabit Ethernet RJ45 connector
3. Connector: Raspberry Pi 40PIN GPIO header x 1
4. USB: USB 2.0 Type A connector x 1
5. Display: MIPI DSI port x 1 (15pin 1.0mm FPC connector)
6. Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector)
7. Video: Mini HDMI port x 1, supports 4K 30fps output
8. Audio: 3.5mm jack

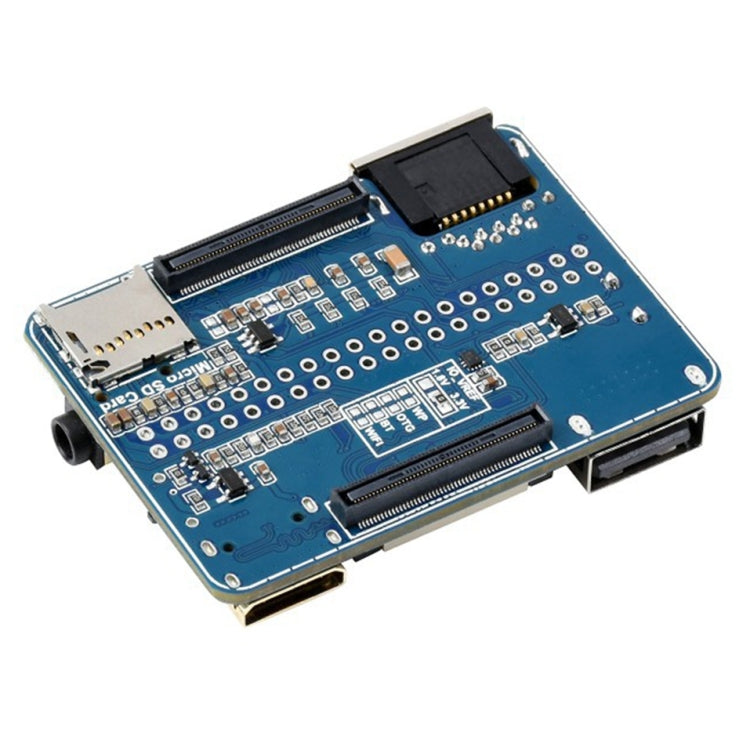

9. Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
10. Power input: 5V

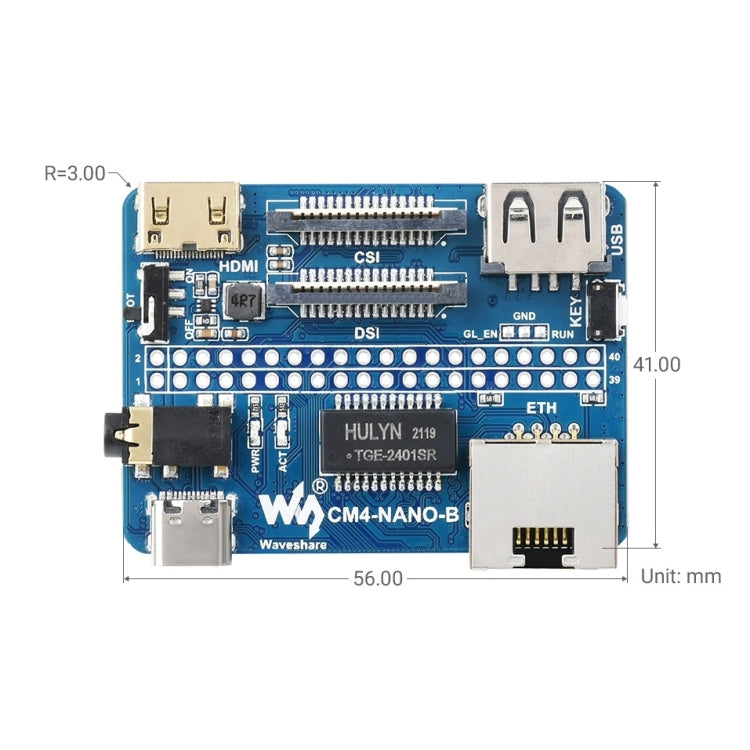

11. Dimension: 56 x 41mm
Package list:
1. CM4-NANO-B x 1
3. 2*20PIN color-coded straight pinheader x 1
