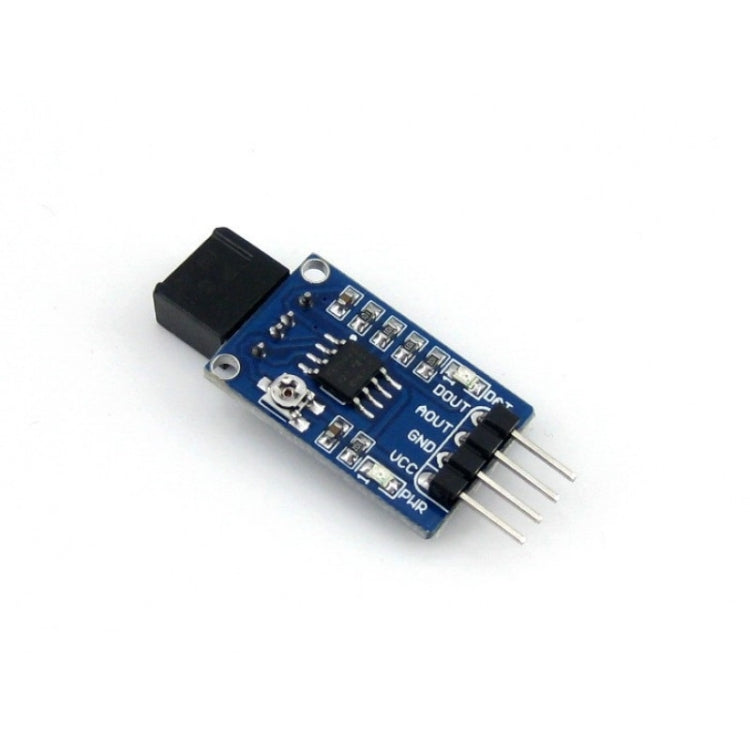

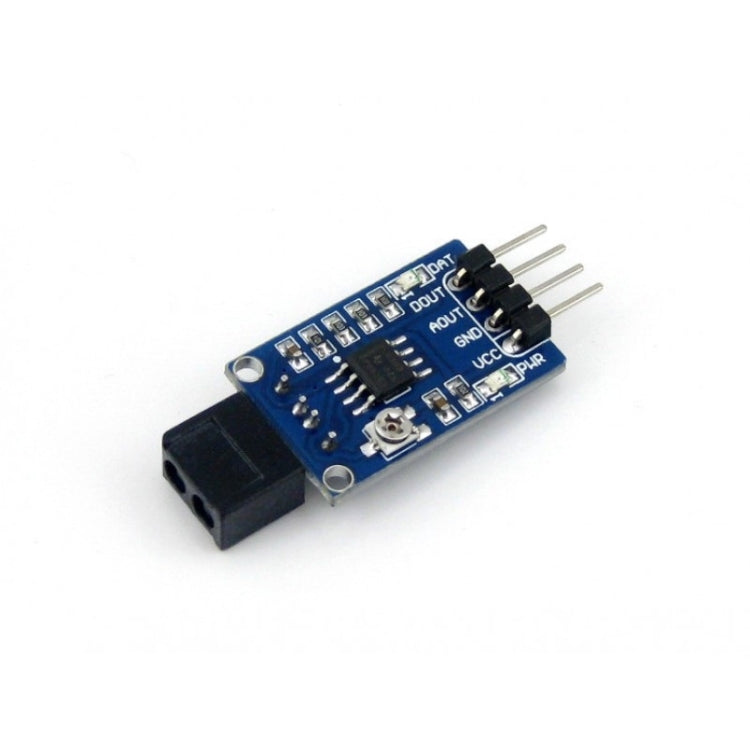

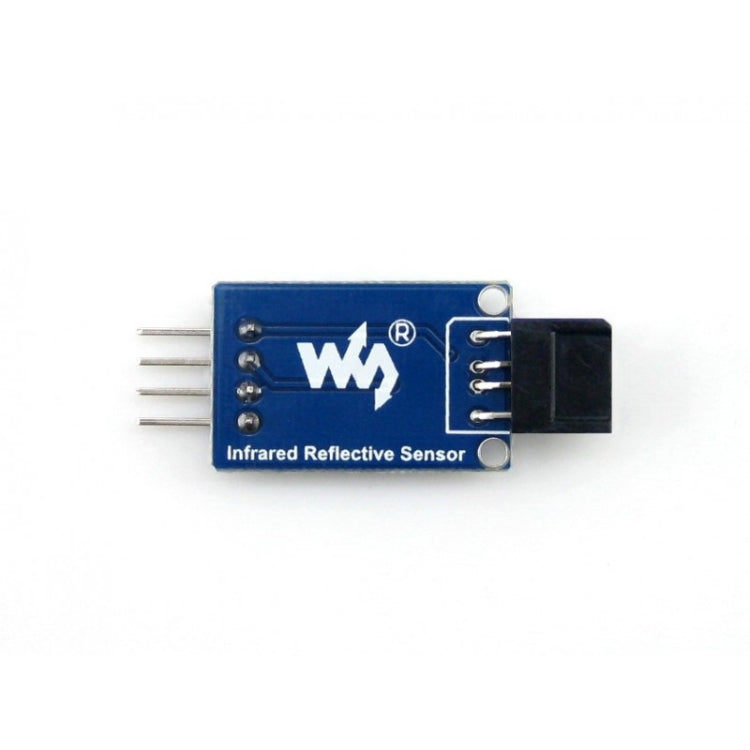

Waveshare Infrared Reflective Sensor, IR
IR
$14.47
$14.47
$16.08
-10%
⚡ Offer ends in:
Skip to product information
Overview
1. Reflective infrared Transceiver
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator
Specifications
1. Power: 3.0V ~ 5.3V
2. Dimension: 25mm * 15.9mm
3. Mounting holes size: 2.0mm
Applications
1. Robot path tracking
2. Obstacle-avoiding car
3. Pipeline counter
How to Use

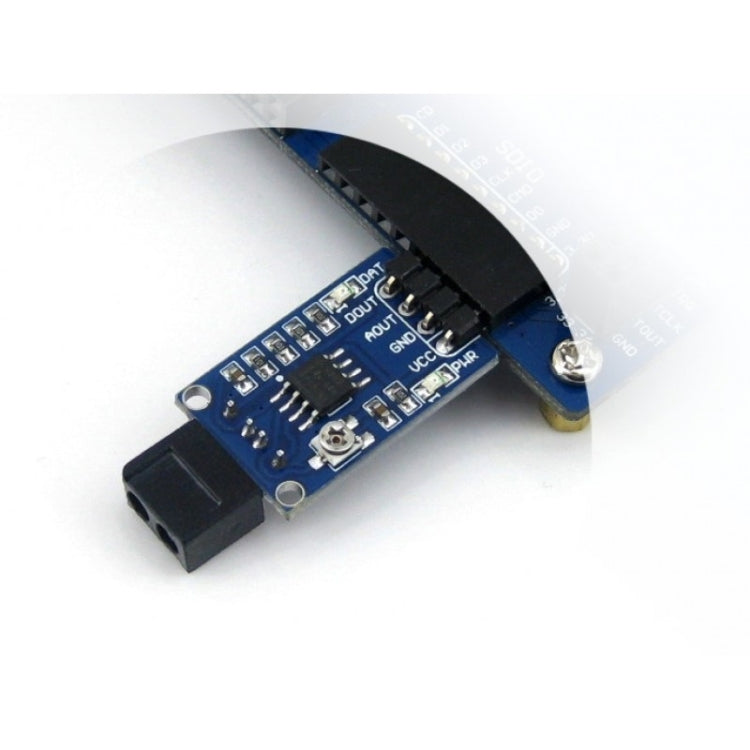

In the case of working with a MCU:

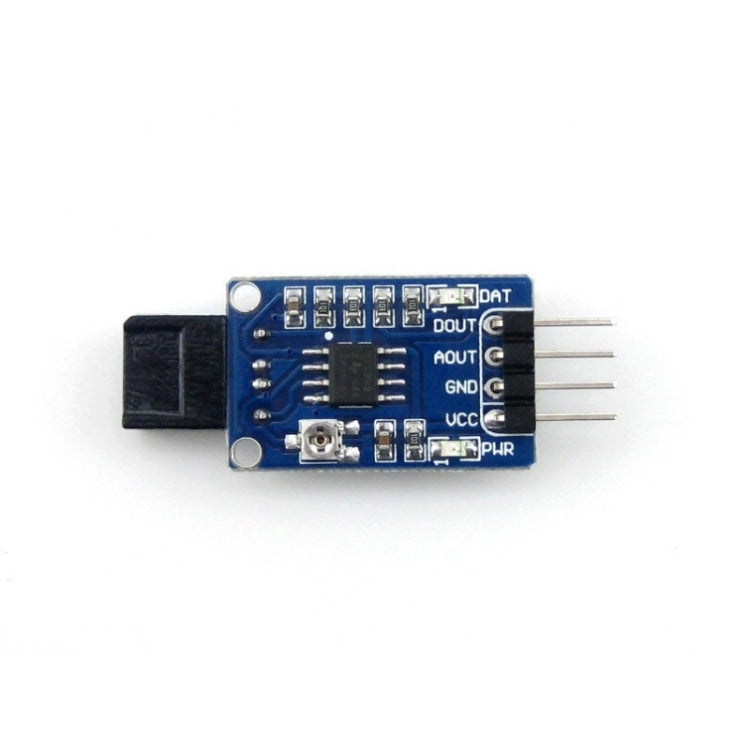

Pinouts
1. VCC: 3.0V ~ 5.3V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT : MCU.IO (digital output)
Package Contents
1. Infrared Reflective Sensor x1
2. 4-pin custom connector jumper wire x1
