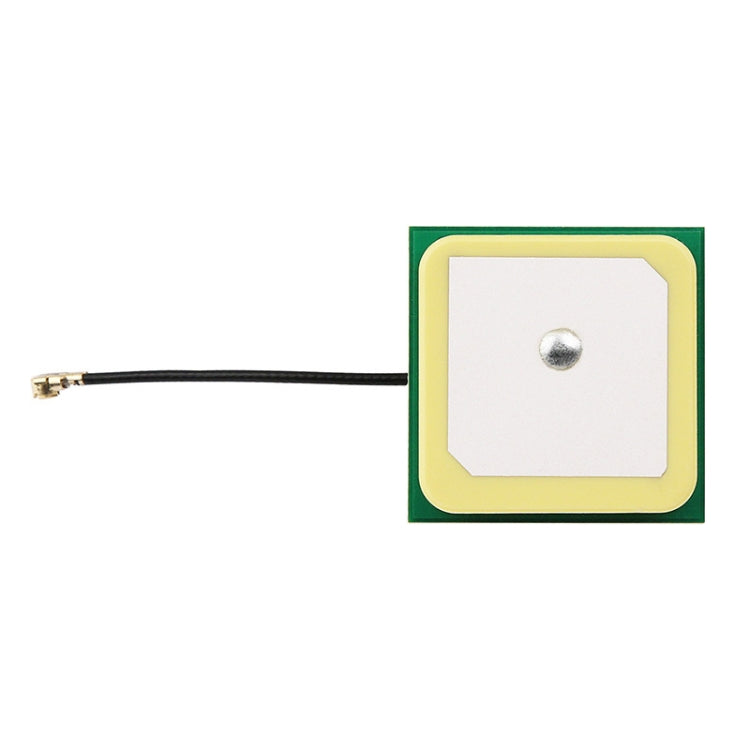

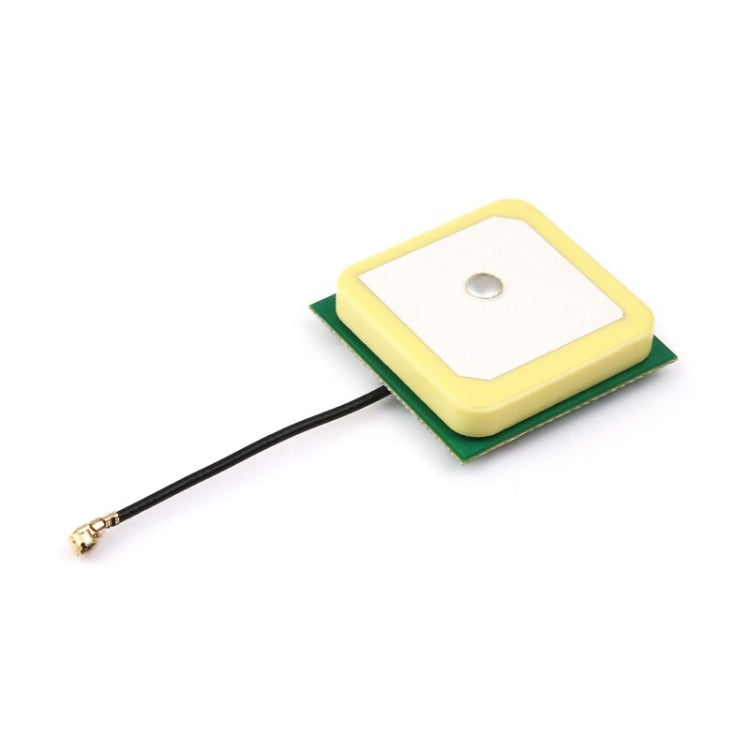

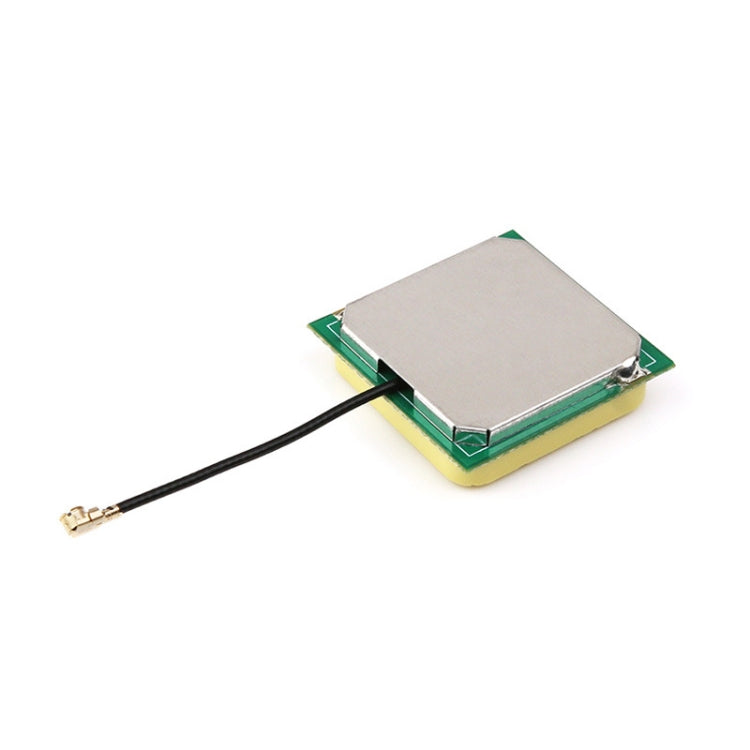

Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector, 24095
24095
$8.46
$8.46
$9.40
-10%
⚡ Offer ends in:
Skip to product information

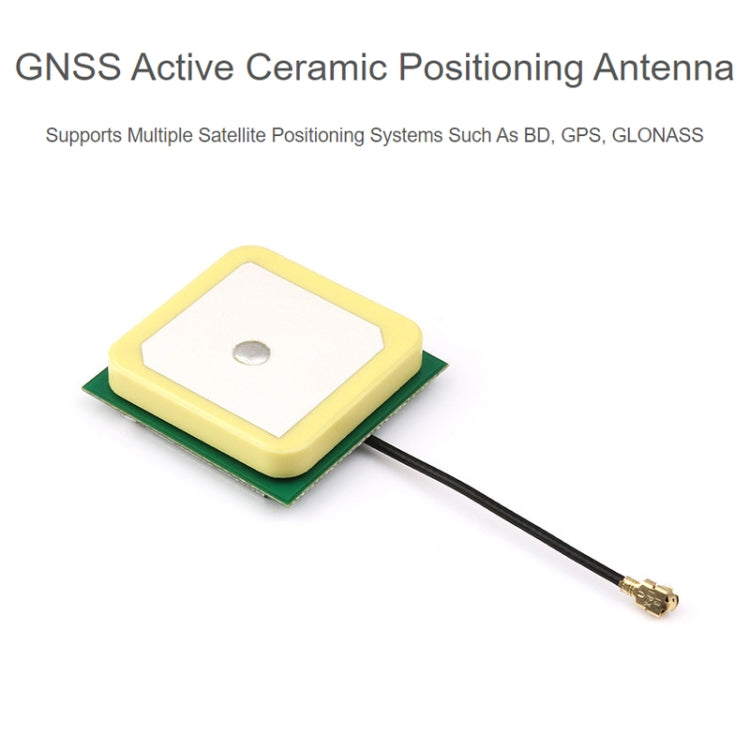

1. GNSS active ceramic positioning antenna supports BD, GPS, GLONASS and other satellite positioning systems
2. Center frequency: 1575.42MHz, 1561MHz, 1602.56MHz
3. Output impedance: 50 ohms
4. Noise: less than or equal to 1.5 decibels
5. Plug: IPEX 1

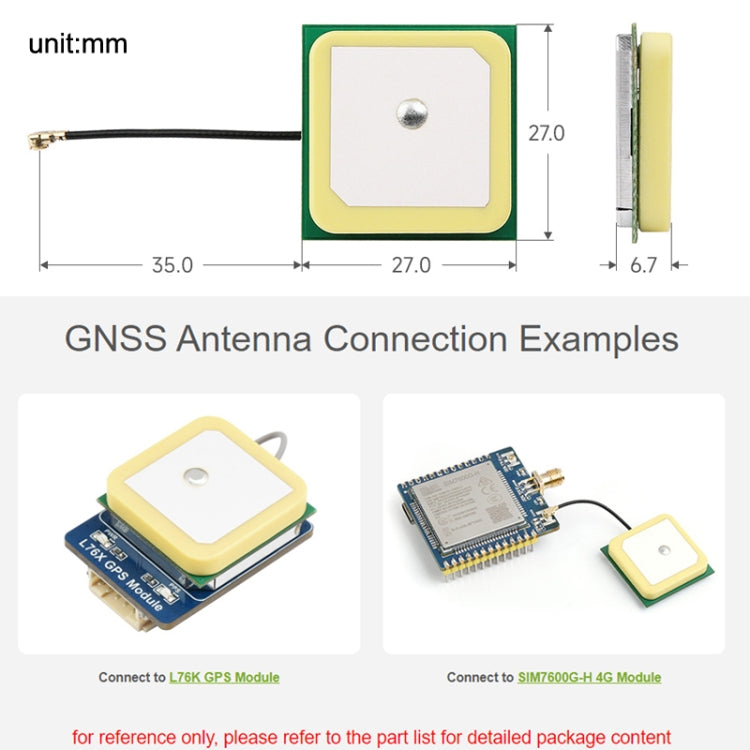

6. Cable length: 35mm
7. Ceramic size: 25 x 25mm
8. Current consumption: less than 10mA
9. Power supply: DC 3.3-5v
10. Operating temperature: -20 to 65 degrees Celsius
11. Input power: 50w
12. Axial ratio: 3dB
13. Radiation direction: omnidirectional
