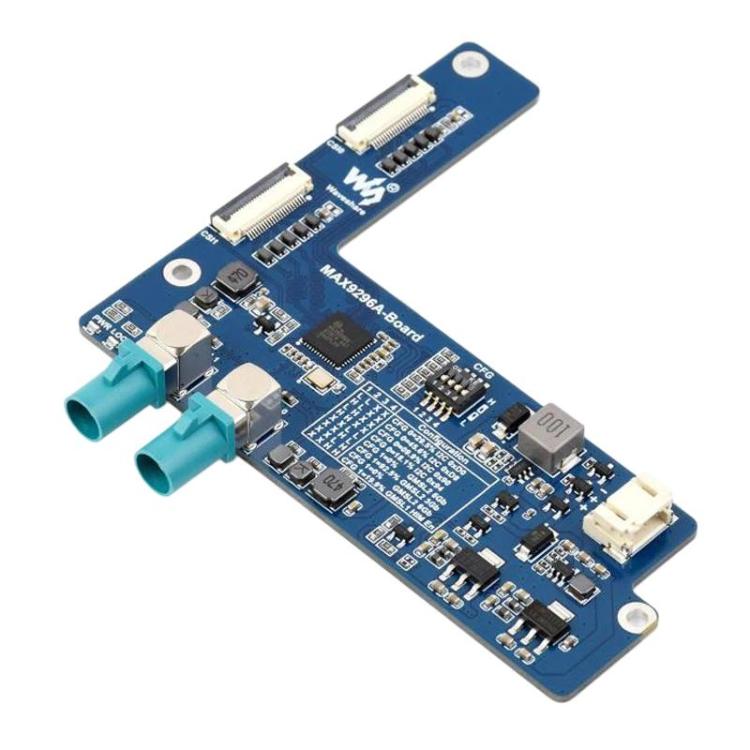

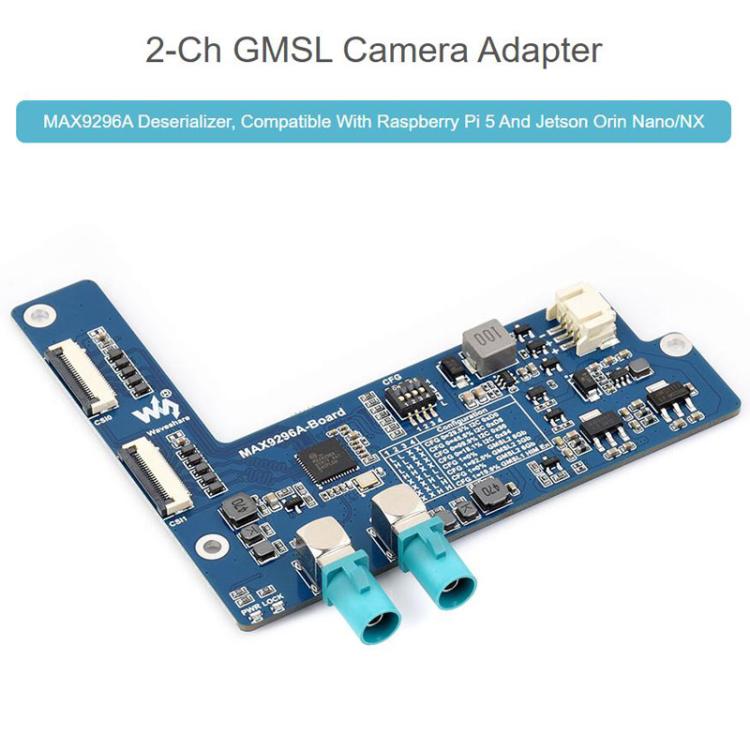

2-Ch GMSL Camera Adapter Board Equipped With MAX9296A Deserializer High-Speed And Low-Latency Serial Transmission, Waveshare 33623
Waveshare 33623
$343.64
$343.64
Skip to product information

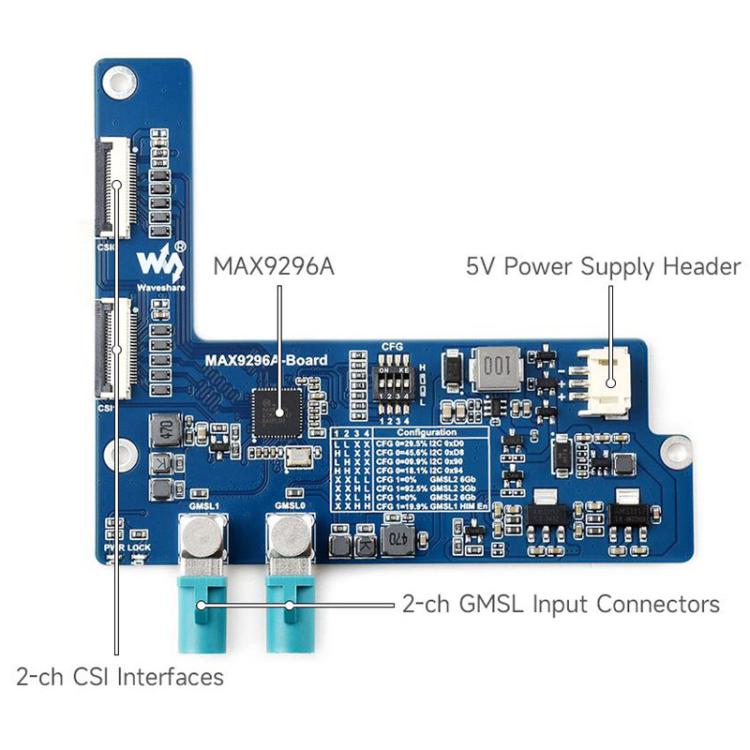

1. Deserializer: MAXIM (ADI) MAX9296A

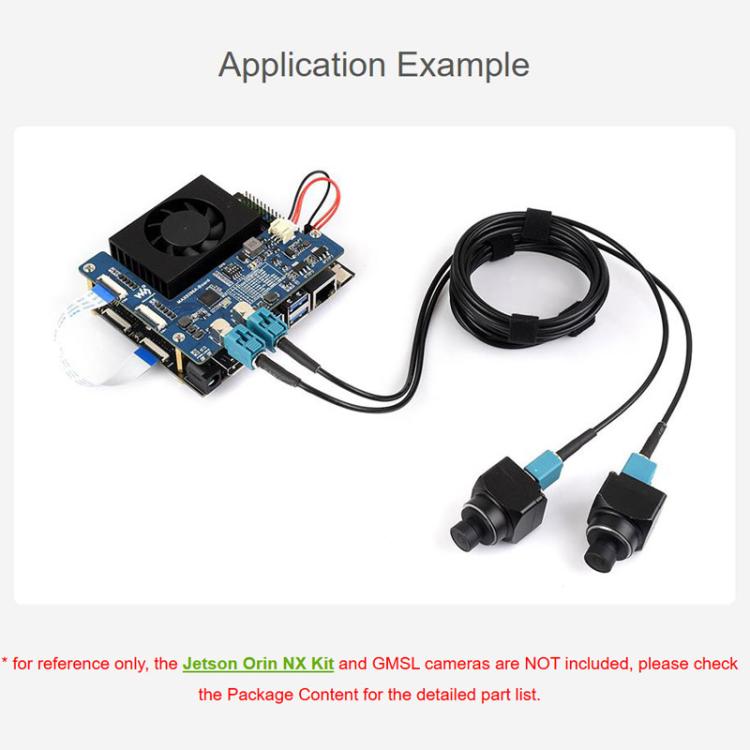

2. Supported hosts: Raspberry Pi 5, Jetson Orin NX/Nano development kits
3. Supported serializer models: MAX9295, MAX96717, MAX96705, etc.
4. GMSL input: 2 x GMSL2 (GMSL1 compatible) cameras
5. Input interface: 2 x MATE_AX FAKRA Z connectors
6. Output interface: 22-pin CSI interface
7. Supported GMSL camera models: ISX031, etc.
8. Power supply: 5V input
Package contents:
- MAX9296-GMSL-DESER-MODULE x 1
- 22-pin FFC cable (about 100mm) x 2
- PH2.0 3-pin connector cable x 1
- Screw kit x 1
