WAVESHARE 128 x 32 Pixel 2.23 inch OLED Display Module for Raspberry Pi Pico, SPI/I2C, 19750
19750
$36.43
$36.43
$40.48
-10%
⚡ Offer ends in:
Skip to product information
1. Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate

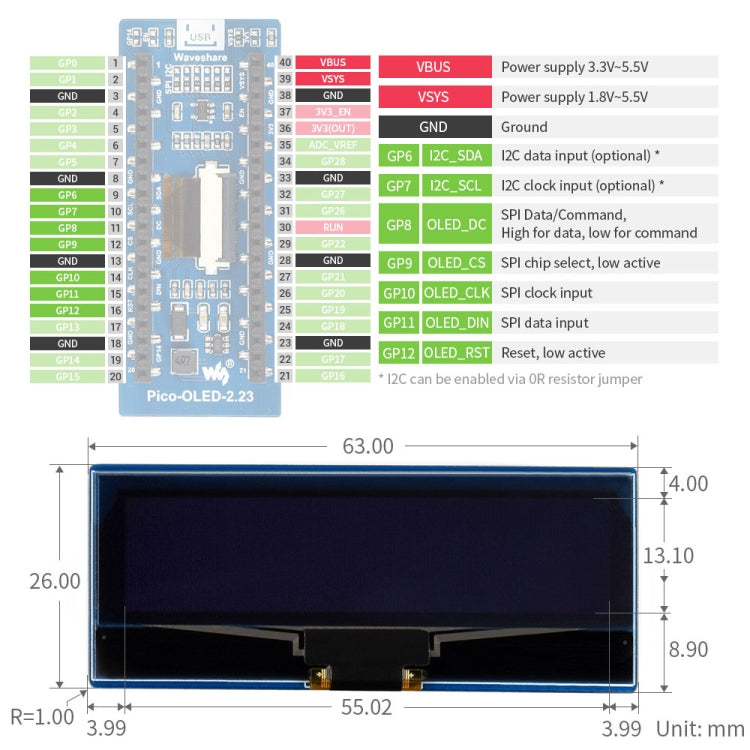

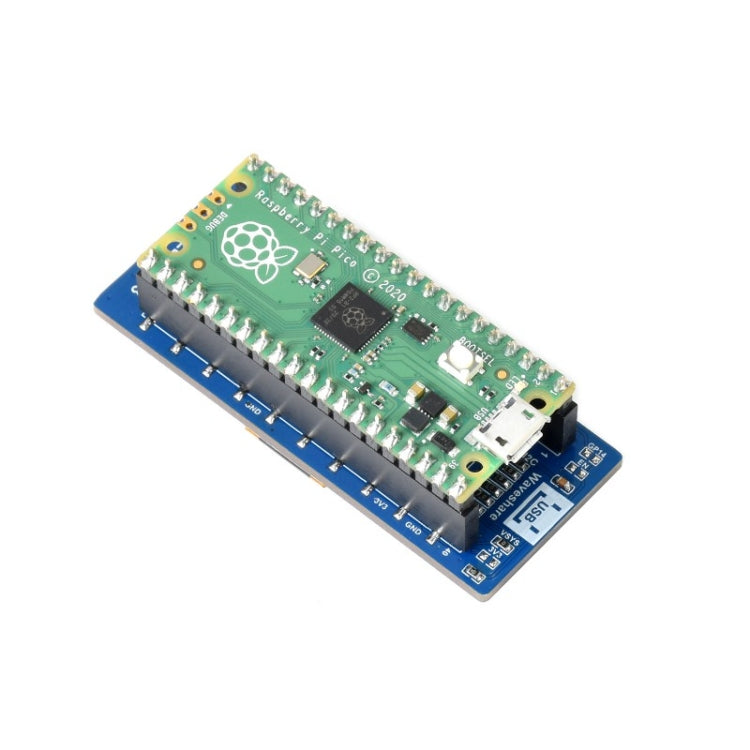

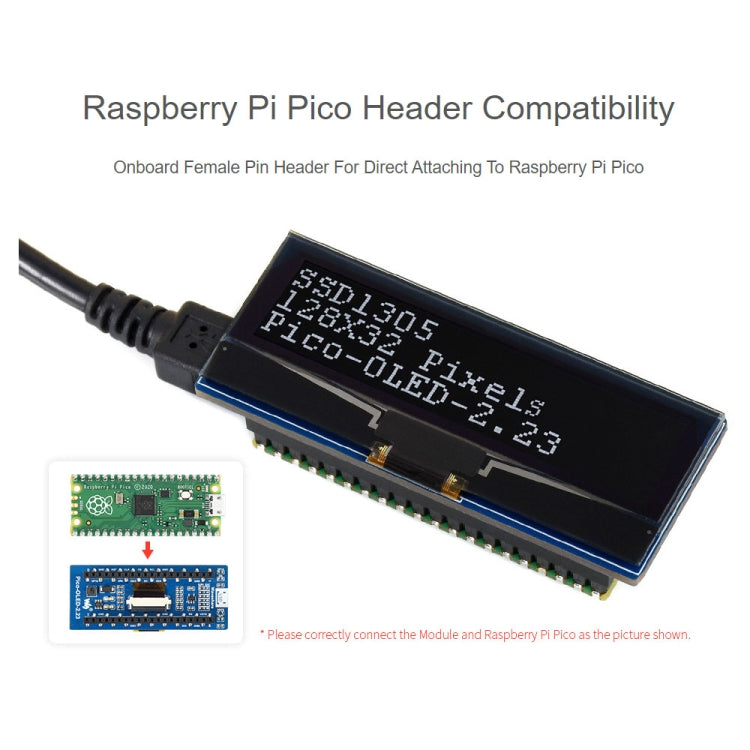

2. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
3. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

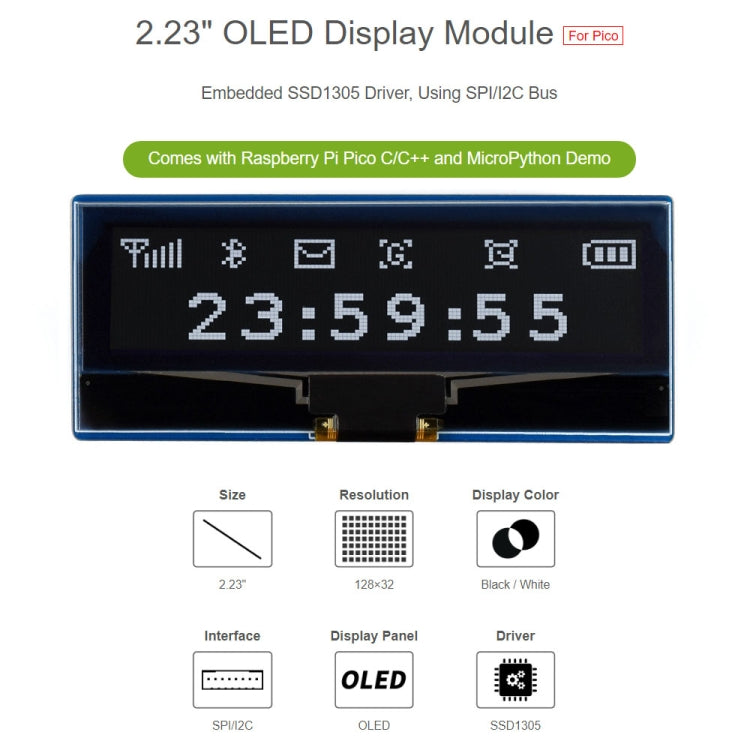

Specification
1. Operating voltage: 3.3V / 5V, Logic voltage: 3.3V
2. Resolution: 128x32 pixels
3. Viewing angle: Greater than 160 degree
4. Communication interface: 4-wire SPI, I2C
5. Display panel: OLED
6. Display size: 55.02 x 13.10mm
7. Pixel size: 0.41 x 0.39mm
8. Driver: SSD1305
9. Size: 52.00 x 25.00mm
WAVESHARE 128 x 32 Pixel 2.23 inch OLED Display Module for Raspberry Pi Pico, SPI/I2C, 19750
$36.43
$36.43
$40.48
-10%
⚡ Offer ends in:
2. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
3. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specification
1. Operating voltage: 3.3V / 5V, Logic voltage: 3.3V
2. Resolution: 128x32 pixels
3. Viewing angle: Greater than 160 degree
4. Communication interface: 4-wire SPI, I2C
5. Display panel: OLED
6. Display size: 55.02 x 13.10mm
7. Pixel size: 0.41 x 0.39mm
8. Driver: SSD1305
9. Size: 52.00 x 25.00mm
