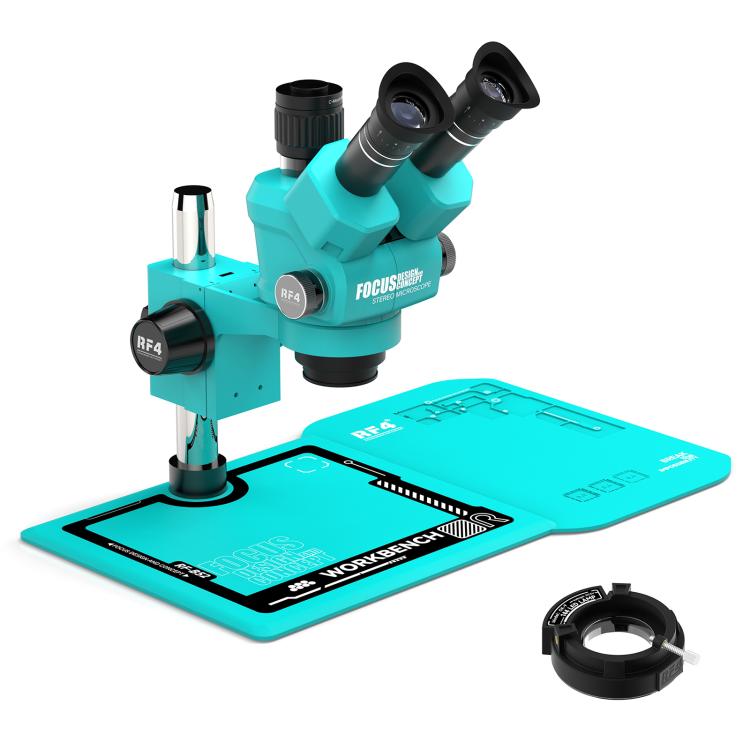

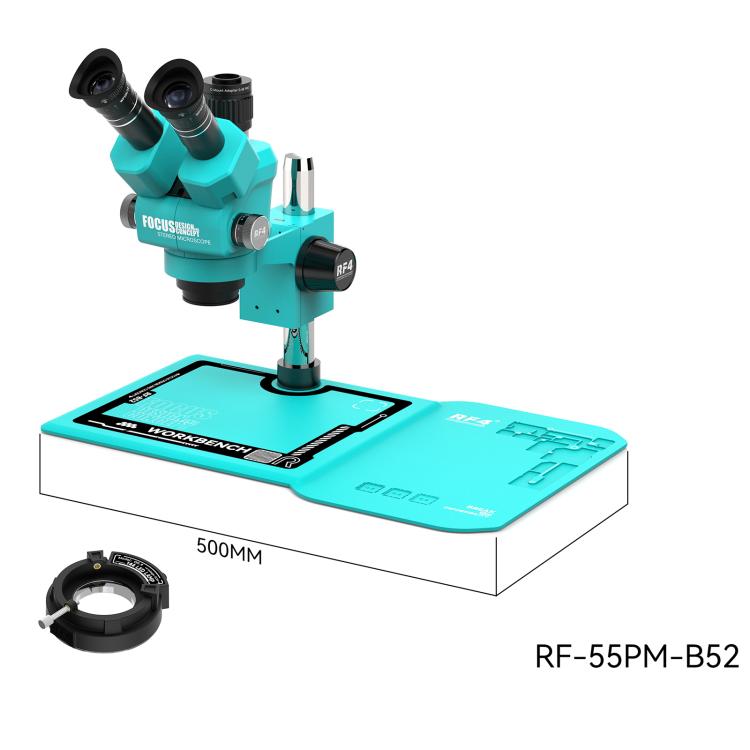

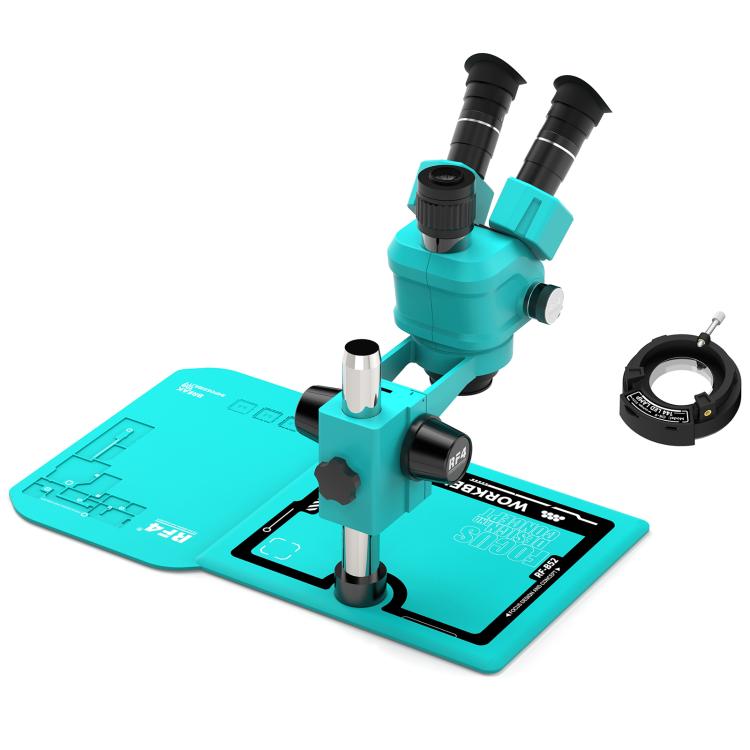

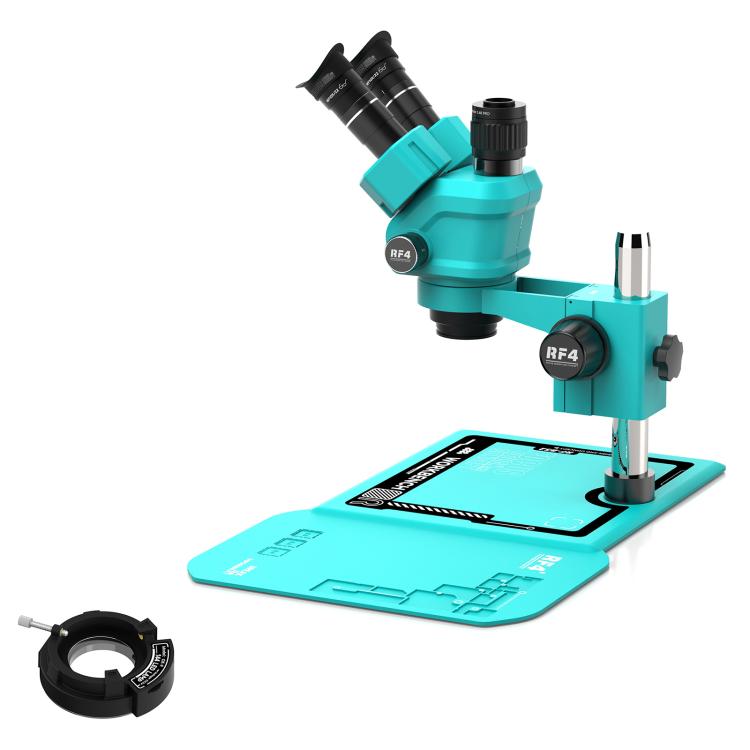

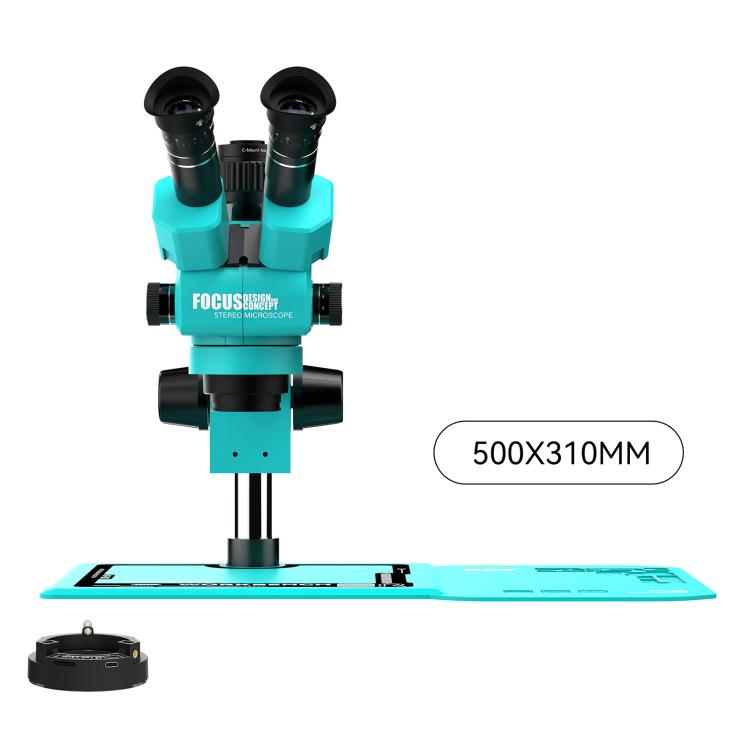

RF4 RF-55PM-B52 6.5-55X Synchronous Zoom Trinocular Stereo Microscope, RF-55PM-B52
RF-55PM-B52
$1,048.80
$1,048.80
Skip to product information

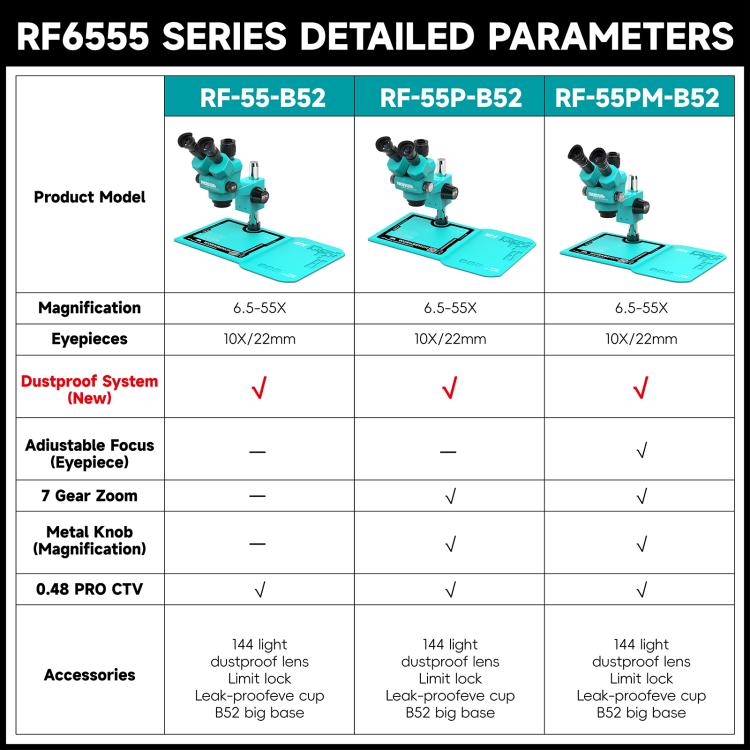

Specification:
1. Magnification: Continuous zoom 6.5X to 55X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM adjustable
4. Objective: 0.65-5.5X
5. Zoom Knob: Metal knob 7 gear zoom
6. Camera Connector: 0.48PRO CTV (Monitor and eyepiece Synchronous zoom)
7. Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup
Support Parameters:
1. Column Aperture: 32mm
2. Lens Aperture: 76mm
3. Center Distance: 155mm
4. Lifting Range: 50mm
Wide-Angle Eyepieces 10X/22:
1. Magnification: 10X
2. Wide field of view 22mm
3. Matching Size: 30mm
4. Applicable Models: Stereoscopic, fixed, and continuous magnification microscopes
0.5X CTV Len:
1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
2. The adapter ring can use LCD to focus, this kind of focus method is manual focus
3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming
144 LED Ring Light:
1. Input: AC 100-240V 50/60Hz
2. Output: DC 12V, Max 700mA
3. Light color: White
4. Number of lights: 144 LEDs
5. Inside diameter: 60mm
Package Includes:
Microscope x 1

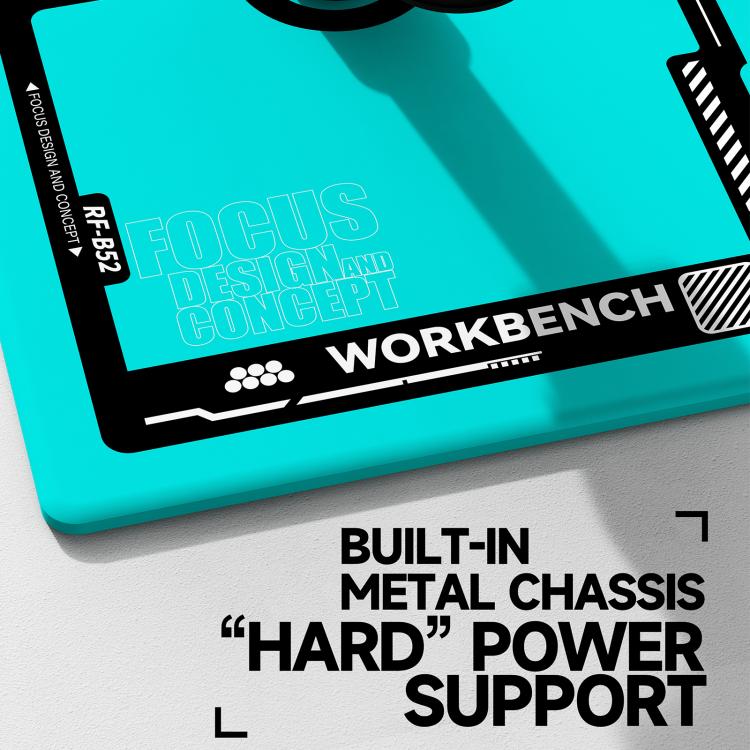

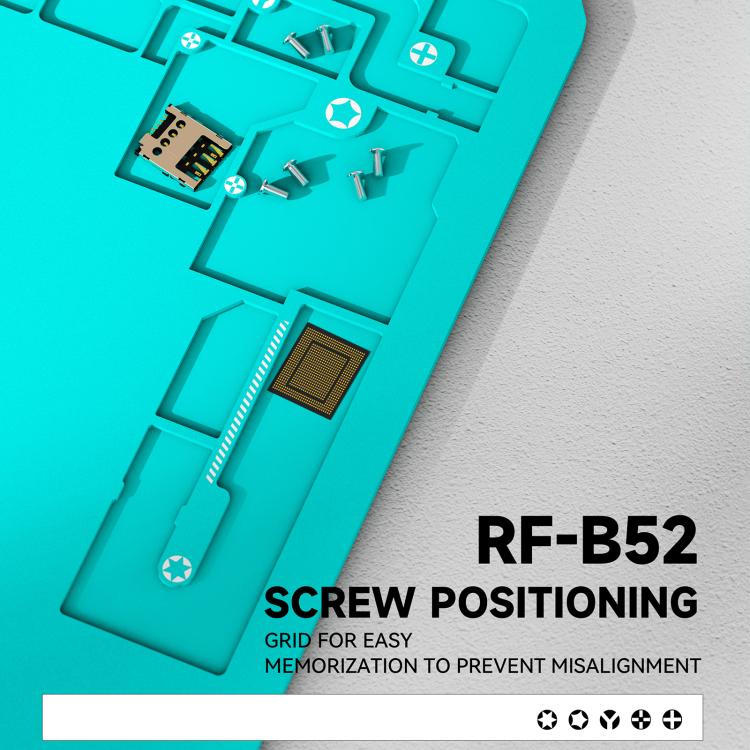

Aluminum Alloy Plate x 1
144 LED Light x 1
Dustproof Len x 1
0.5X CTV Lens x 1
