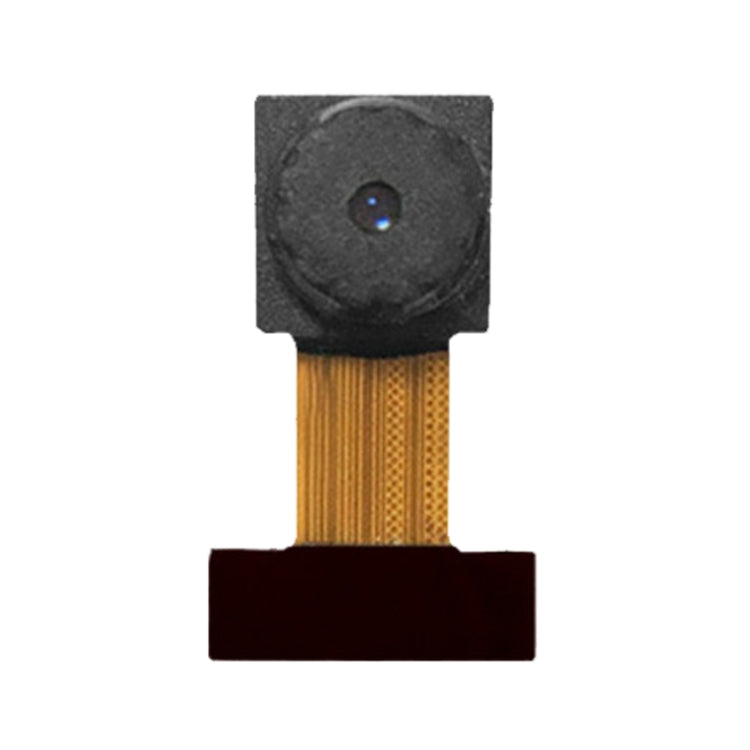

HDF3M-811 OV2640 DVP 24Pin Phone Built-in Compression Camera Module, HDF3M-811
HDF3M-811
$27.04
$27.04
$30.04
-9%
⚡ Offer ends in:
Skip to product information
1. 2 megapixel, UXGA (1632x1232), support dynamic, with JPEG picture compression
2. Can be used for cell phones, map transfer, PC multimedia, toys, digital cameras, scanning and other devices
3. Low light operation, high sensitivity, embedded portable applications, low operating voltage
4. Body material: FPC
5. Pixels: 2 megapixels (1632x1232)
6. Light-sensitive chip: OV2640 (1/4 inch) CMOS
7. Output format: YUV(422/420)/YCbcr422, RGB565/555, 8-bit compressed data, 8/10-bit original RGB data
8. Frame rate: UXGA/SXGA: 15fps; SVGA: 30 fps; CIF: 60 fps
9. Interface: DVP
10. System support: Android, Windows, Linux

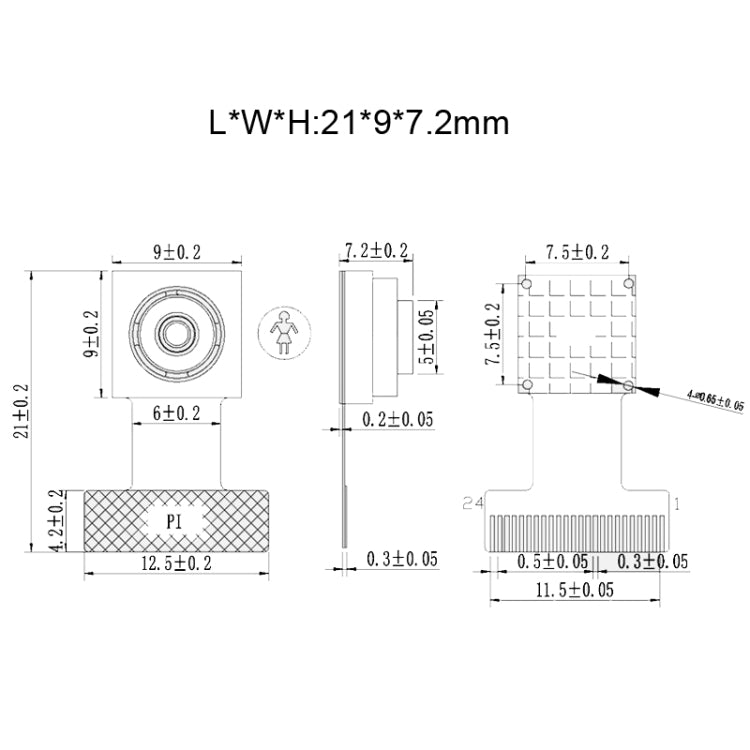

11. Size: about 21 x 9 x 7.2mm
